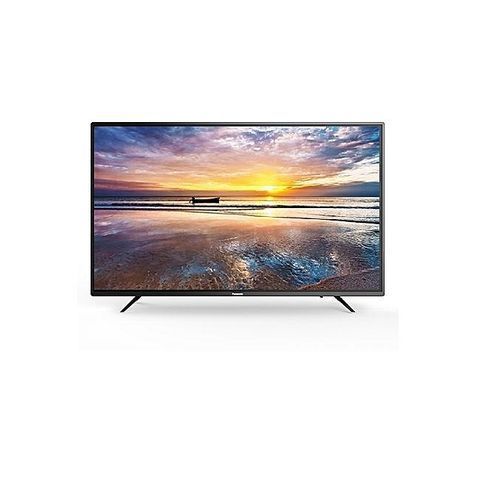

Panasonic 32 Inch HD LED TV TH-32F336M

Make Pictures Look Crisper with a Wide Viewing Angle
Everything from color expression to sharpness and clarity benefits from high brightness. So LED Bright technology injects more brightness into pictures by putting high efficiency LED lights behind an exceptional transmissive panel. Excellent viewing angle characteristics provide beautiful images even when viewed from an angle

Slim D-LED / Narrow Bezel

• Slim D-LED: 9.2mm thickness
• Narrow Bezel: 13 mm
• Hair Line front bezel design

Media Player

• USB to USB Copy
• Capture screen short in USB

FEATURES
GENERAL ITEMS

• Model Number TH-32F336M
• OSD LANGUAGES English, Arabic,Persian,French,Portuguese
• MANUAL LANGUAGES English
• COLOUR Black

TUNNING

• NUMBER OF PROGRAMS ATV: 100, DTV: 500
• COLOUR SYSTEM PAL/NTSC
• SOUND SYSTEM BG / I / DK / M
• DTV SYSTEM DVB-T/T2


• RESOLUTION 1366*768 (HD)
• ASPECT RATIO 4:3/16:9/Zoom1/Zoom2/Just Scan
• DNR (Noise Reduction) Yes
• Picture Mode Yes

AUDIO

• AUDIO OUTPUT POWER (RMS) 8W+8W(Typ.)
• SPEAKER TYPE intergrated speakers(6Ω)

FEATURES

• HOTEL MODE YES
• PANASONIC LOGO YES
• CEC YES
• SOUND OUT(ARC） YES
• DIGITAL DOLBY YES

CONNECTIVITY

• RF IN YES
• DTV IN YES
• AV1 IN YES
• AV2 IN NO
• AV OUT NO
• DVD COMPATIBILITY (YPbPr/YCbCr) NO
• USB INPUT (3.0 SUPPORT) NO
• USB INPUT (2.0 SUPPORT) 1
• HDMI INPUT(2.0 SUPPORT) 2 (HDMI1.4)
• HEADPHONE OUT 1
• PC AUDIO IN NO
• PC(VGA IN) NO
• MHL NO
• AUDIO OUT NO
• SPDIF OUT SPDIF OUT(COAXIAL)
• RJ-45 YES
• ANY OTHER (PLEASE SPECIFY) NO

MULTIMEDIA SUPPORT

• USB DEVICE SUPPORT FAT16, FAT32, NTFS(Read only) DO NOT SUPPORT NTFS COMPRESSD FILE
• PICTURE FORMAT JPEG, BMP,PNG
• AUDIO FORMAT MP3
• VIDEO FORMAT Mpeg1/2,H.264,VC1,HEVC,Mpeg4

PANEL SPECIFICATIONS

• PANEL MODEL NO. AND TYPE O/C: BOE/HV320WHB-N86
• SCREEN SIZE & DIAGONAL 32”
• ASPECT RATIO 16:09
• RESOLUTION 1366(H) x768(V)
• DISPLAY AREA(H x V) 697.685mm(H)x392.256mm(V)
• PIXEL PITCH 0.51075mm(H)x0.51075mm(V)
• DISPLAY COLOURS 16.7M
• CONTRAST RATIO 1200:1(Typ.)
• MAX BRIGHTNESS 230(Typ.)
• VIEWING ANGLE (HORIZONTAL / VERTICAL) 176°(H)/176°(V)((Typ.)

WEIGHT AND DIMN.

• NET WEIGHT WITH PEDESTAL 4.2kg
• NET WEIGHT W/O PEDESTAL 4.1kg
• NET DIMENSIONS WITH PEDESTAL 727.3mm x 175.0mm x 476.3mm
• NET DIMENSIONS W/O PEDESTAL 727.3mm x 83.0mm x 431.5mm
• GROSS DIMENSIONS (PACKING BOX) 808mm x 131mm x 509mm
• GROSS WEIGHT (WITH PACKING BOX) 5.6kg

RATING

• OPERATING VOLTAGE 100V-240V~ at 50/60Hz
• POWER CONSUMPTION TBD
• STD BY POWER CONSUMPTION
